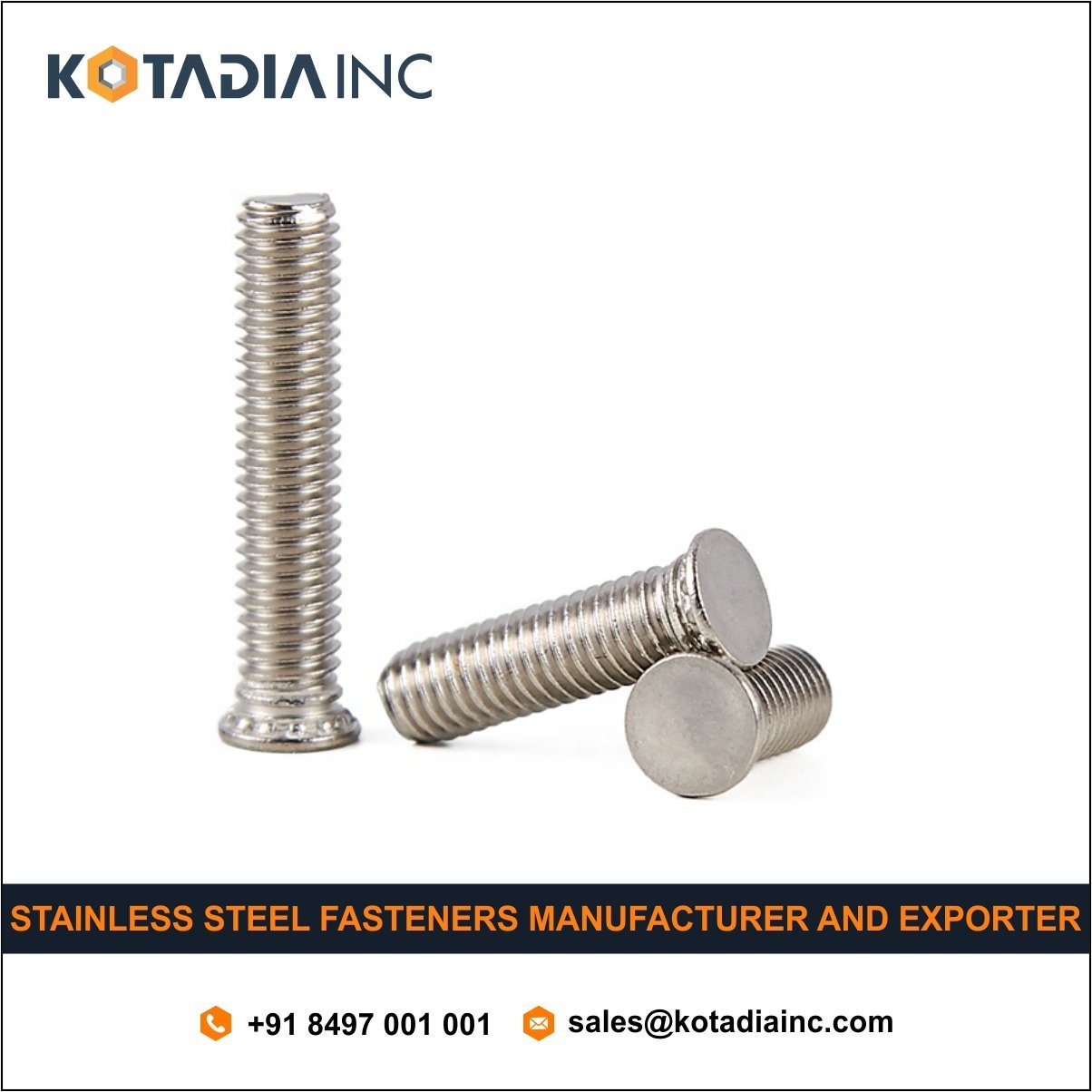

Stainless Steel Self Clinching Studs

Clinch Studs Work Through A Process Known As Clinching, Which Is A Cold-Forming Technique Used To Permanently Join Two Or More Layers Of Sheet Metal Together. Here’s How Clinch Studs Work: Stainless Steel Self Clinching Stud/ Ss Clinch Stud/ Self Clinching Stud/ Clinching Stud/.











Self-Clinching Stud Installation Process:

When installing a self-clinching stud, specific tolerances must be met. The most important factors to consider are the sheet metal framework’s ductility, thickness, and hardness. A cold flow process between the chassis material and the fastener material causes the chassis metal to wrap around the clinch profile of the stud, securing it and locking the fastener in place. Using a material that is too thin or too hard will prevent the self-clinching process from working correctly.

Steps in the Installation of Self-Clinching Studs

Utilize the following steps for proper installation of your self-clinching press-fit studs:





Step 1
Select the appropriate hole size for the stud size required. Punch or laser cut the hole diameter into the sheet material and place the material on top of the proper anvil.



Step 2
Place the stud so that the head serrations rest on the parent material. If the hole is punched, please be sure to insert the stud through the punch side and not the die side. If placed in the die side, the fasteners may not clinch properly due to a lack of material. Ensure both plate and stud are aligned along the same axis. If not, the joint will be imperfect, and mating threads will misalign.



Step 3
Using a flat-faced profiled punch, apply only sufficient pressure to ‘squeeze’ the stud head and its underhead tooth features into the parent sheet metal.

Step 4
The tooth locking feature will provide torsional (rotational) resistance if properly installed. After installation, the head of the stud should be flush with the sheet metal when using a flush head style stud.







How to Select the Correct Self-Clinching Stud

Press-fit self-clinching studs are available in various sizes, strengths, and styles based on your application requirements. Choosing the correct self-clinch stud for your project will depend on several factors, some of which include:

• Application
• Attached panel material
• Components that will be attached to the stud

Clinch Studs Offer Several Advantages Over Traditional Fastening Methods, Including:

• No Welding Or Adhesives: Clinching Does Not Require Heat, Welding, Or Adhesives, Making It A Clean And Efficient Joining Method.
• High Strength: The Cold-Forming Process Results In A Strong, Reliable Connection That Can Withstand High Loads And Vibrations.
• Cost-Effective: Clinch Studs Eliminate The Need For Additional Fasteners, Such As Nuts And Bolts, Reducing Material Costs And Assembly Time.
• Versatility: Clinch Studs Can Be Used In Various Sheet Metal Thicknesses And Materials, Including Steel, Aluminum, And Stainless Steel.

Overall, Clinch Studs Provide A Simple, Efficient, And Durable Solution For Creating Secure Connections In Sheet Metal Assemblies Across A Wide Range Of Industries.
